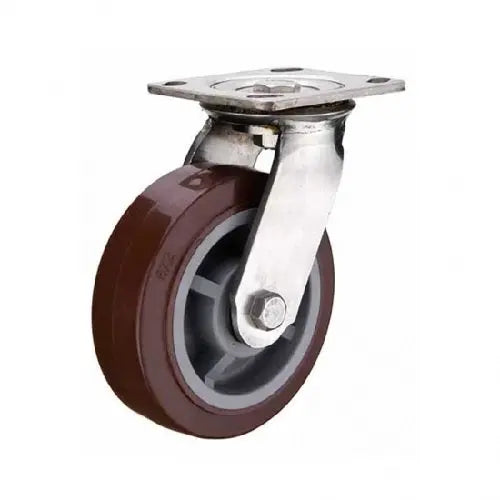

4" Inch Caster 441 lbs Swivel Stainless steel fork and Polyurethane Top Plate

4" Inch Caster 441 lbs Swivel Stainless steel fork and Polyurethane Top Plate

Item Name: 4inch-Swivel-Caster-010

Wheel Diameter: 100mm

Wheel Width: 50mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 142mm

Overall Height Inch: 5.591"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Stainless steel fork and Polyurethane

Tire: Stainless steel fork and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 441 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Wheel casters like the 4inch-Swivel-Caster-010 are used to roll your built machine or equipment back and forth. This caster is rolled on a wheel that has 100mm diameter/3.937" inch inches. The wheel has a width of 50mm=1.969" inch. The overall height of the caster is 142mm or 5.591" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The Double ball beaing design will enable the Stainless steel fork and Polyurethane tire to roll easily with a core made of Stainless steel fork and Polyurethane. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 441 lb with a Swivel type. The temperature range is -40 to 180 F. Buy the 4inch-Swivel-Caster-010 now, just add the quantity to basket and click on Checkout.
