KCW Casters

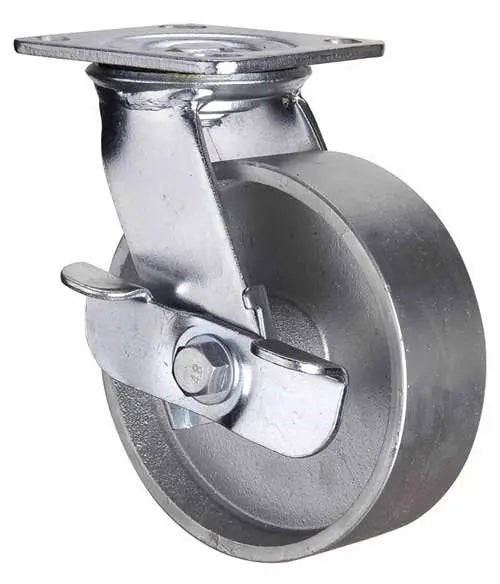

4" Inch Caster 551 lbs Swivel and Center Locking Cast Iron Top Plate

4" Inch Caster 551 lbs Swivel and Center Locking Cast Iron Top Plate

Regular price $20.04 USD
Regular price Sale price $20.04 USD
Sale Sold out
SKU: 4inch-Lock-Swivel-Caster-029
4" Inch Caster 551 lbs Swivel and Center Brake Cast Iron Top Plate
  • Item Name: 4inch-Lock-Swivel-Caster-029
  • Wheel Diameter: 100mm
  • Wheel Width: 50mm
  • Wheel Diameter: 4" Inch = 100mm
  • Overall Height: 142mm
  • Overall Height Inch: 5.591"
  • Mounting Type: Top Plate
  • Top Plate Size: 115mm x 100mm x 5.5mm
  • Hole distance: 72mm x 85mm
  • Wheel Core: Cast Iron
  • Tire: Cast Iron
  • Bearing type: Roller bearing
  • Load Capacity: 551 lb
  • Mounting: Swivel and Center Locking
  • Temperature Range: -40 to 180 F

  • Mounting 4inch-Lock-Swivel-Caster-029 is the solution of making your project to move around by pushing. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. The thickness of the wheel is 50mm or 1.969" inch. The Caster with the wheel from end to end is 142mm = 5.591" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 115mm x 100mm x 5.5mm with the holes distance of 72mm x 85mm. The caster core is made of Cast Iron and has a Cast Iron tire with a low friction Roller bearing. Each caster will carry the load of 551 lb and is Swivel and Center Locking type. Last and not least the temperature range = -40 to 180 F. Enjoy our 4inch-Lock-Swivel-Caster-029, we wish all the best in your project.
