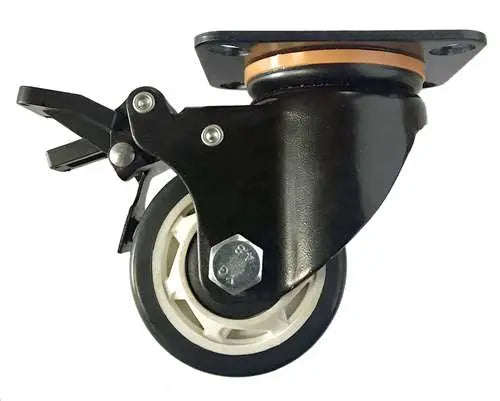

4" Inch Caster 551 lbs Swivel and Upper Locking Polyurethane and Polypropylene Top Plate

4" Inch Caster 551 lbs Swivel and Upper Brake Polyurethane and Polypropylene Top Plate

Item Name: 4inch-Lock-Swivel-Caster-025

Wheel Diameter: 100mm

Wheel Width: 40mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 140mm

Overall Height Inch: 5.512"

Mounting Type: Top Plate

Top Plate Size: 110mm x 100mm x 4mm fork:3.5mm

Hole distance: 85mm x 75mm

Wheel Core: Polyurethane and Polypropylene

Tire: Polyurethane and Polypropylene

Bearing type: ball bearing

Load Capacity: 551 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Imagine your office chair has no wheel caster, you would be carrying it right and left, install 4inch-Lock-Swivel-Caster-025 instead. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. The thickness of the wheel is 40mm or 1.575" inch. The overall height of the caster is 140mm or 5.512" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 110mm x 100mm x 4mm fork:3.5mm and holes distance of 85mm x 75mm. The ball bearing design will enable the Polyurethane and Polypropylene tire to roll easily with a core made of Polyurethane and Polypropylene. Each caster will carry the load of 551 lb and is Swivel and Upper Locking type. Temperature range = -40 to 180 F. Enjoy our 4inch-Lock-Swivel-Caster-025, we wish all the best in your project.
