KCW Casters

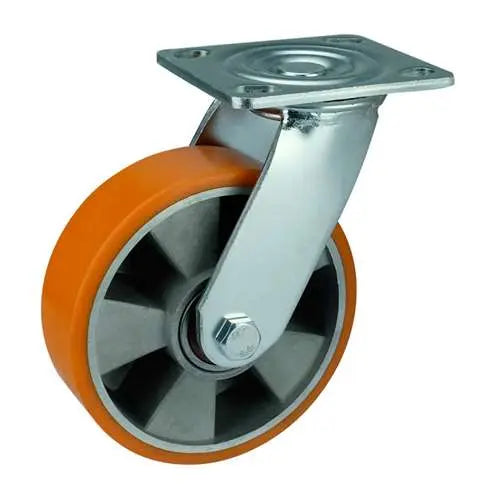

4" Inch Caster 661 lbs Swivel Aluminum and Polyurethane Top Plate

4" Inch Caster 661 lbs Swivel Aluminum and Polyurethane Top Plate

Regular price $20.94 USD
Regular price Sale price $20.94 USD
Sale Sold out
SKU: 4inch-Swivel-Caster-018
4" Inch Caster 661 lbs Swivel Aluminum and Polyurethane Top Plate
  • Item Name: 4inch-Swivel-Caster-018
  • Wheel Diameter: 100mm
  • Wheel Width: 50mm
  • Wheel Diameter: 4" Inch = 100mm
  • Overall Height: 142mm
  • Overall Height Inch: 5.591"
  • Mounting Type: Top Plate
  • Top Plate Size: 115mm x 100mm
  • Hole distance: 72mm x 85mm
  • Wheel Core: Aluminum and Polyurethane
  • Tire: Aluminum and Polyurethane
  • Bearing type: Double ball beaing
  • Load Capacity: 661 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Mounting the 4inch-Swivel-Caster-018 Wheel Caster can make your life easier, push or pull your new project on wheels. This caster is rolled on a wheel that has 100mm diameter/3.937" inch inches. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 142mm/5.591" inch. Mounted via a Top Plate that has the size of 115mm x 100mm and the holes distance of 72mm x 85mm. Rolling with a wheel core material of Aluminum and Polyurethane and a Aluminum and Polyurethane tire rolled over Double ball beaing. Each caster will carry the load of 661 lb and is Swivel type. Temperature range = -40 to 180 F. Enjoy our 4inch-Swivel-Caster-018, we wish all the best in your project.
