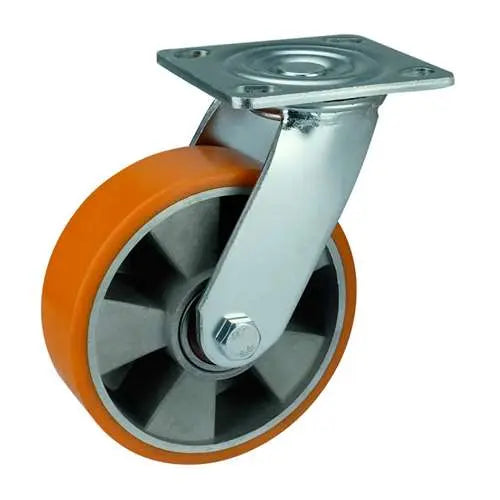

4" Inch Caster 772 lbs Swivel Aluminium and Polyurethane Top Plate

4" Inch Caster 772 lbs Swivel Aluminium and Polyurethane Top Plate

Item Name: 4inch-Swivel-Caster-009

Wheel Diameter: 100mm

Wheel Width: 50mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 150mm

Overall Height Inch: 5.906"

Mounting Type: Top Plate

Top Plate Size: 115mm x 100mm x 6mm

Hole distance: 72mm x 85mm

Wheel Core: Aluminium and Polyurethane

Tire: Aluminium and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 772 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Wheel casters like the 4inch-Swivel-Caster-009 are used to roll your built machine or equipment back and forth. This caster is rolled on a wheel that has 100mm diameter/3.937" inch inches. The wheel has a width of 50mm=1.969" inch. The overall height of the caster is 150mm or 5.906" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 115mm x 100mm x 6mm with the holes distance of 72mm x 85mm. The caster core is made of Aluminium and Polyurethane and has a Aluminium and Polyurethane tire with a low friction Double ball beaing. Each caster will carry the load of 772 lb and is Swivel type. Last and not least the temperature range = -40 to 180 F. Buy the 4inch-Swivel-Caster-009 now, just add the quantity to basket and click on Checkout.
