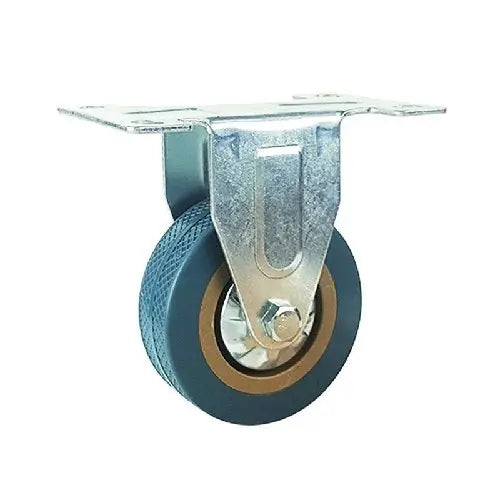

4" Inch Caster 88 lbs Fixed Polyvinyl Chloride Top Plate

4" Inch Caster 88 lbs Fixed Polyvinyl Chloride Top Plate

Item Name: 4inch-Caster-032

Wheel Diameter: 100mm

Wheel Width: 27mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 130mm

Overall Height Inch: 5.118"

Mounting Type: Top Plate

Top Plate Size: 76mm x 76mm

Hole distance: 57mm x 57mm

Wheel Core: Polyvinyl Chloride

Tire: Polyvinyl Chloride

Bearing type: Plain bearing

Load Capacity: 88 lb

Mounting: Fixed

Temperature Range: -40 to 180 F

4inch-Caster-032 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This caster is rolled on a wheel that has 100mm diameter/3.937" inch inches. The thickness of the wheel is 27mm or 1.063" inch. The caster dimensions heightwise is 130mm/5.118" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 76mm x 76mm and holes distance of 57mm x 57mm. Low drag was achieved by a Polyvinyl Chloride core on a Polyvinyl Chloride tire spinning freely with a Plain bearing. Bearing in mind that every caster wheel has the load capacity of 88 lb with a Fixed type. The temperature range is -40 to 180 F. Enjoy our 4inch-Caster-032, we wish all the best in your project.
