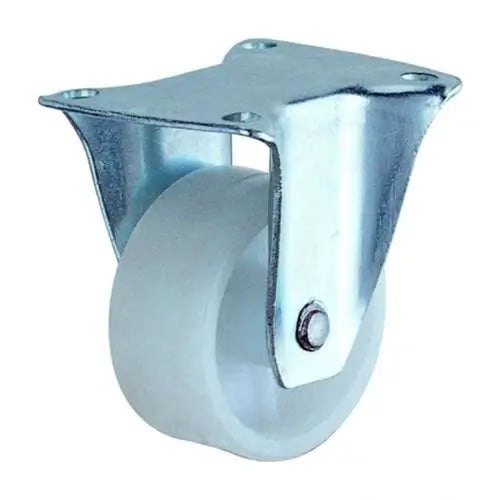

40mm Caster 44 lbs Fixed Plastic Top Plate
40mm Caster 44 lbs Fixed Plastic Top Plate
Couldn't load pickup availability
40mm-Caster-002 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This caster is rolled on a wheel that has 40mm diameter/1.575" inch inches. Dimensions of the caster wheel is 17mm (.669" inch). The Caster with the wheel from end to end is 54mm = 2.126" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 45mm x 40mm with the holes distance of 35mm x 28.5mm. Rolling with a wheel core material of Plastic and a Plastic tire rolled over -. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 44 lb with a Fixed type. Temperature range = -40 to 180 F. Enjoy our 40mm-Caster-002, we wish all the best in your project.
