KCW Casters

40mm Caster 44 lbs Plastic Top Plate

40mm Caster 44 lbs Plastic Top Plate

Regular price $1.16 USD
Regular price Sale price $1.16 USD
Sale Sold out
SKU: 40mm-Caster-004

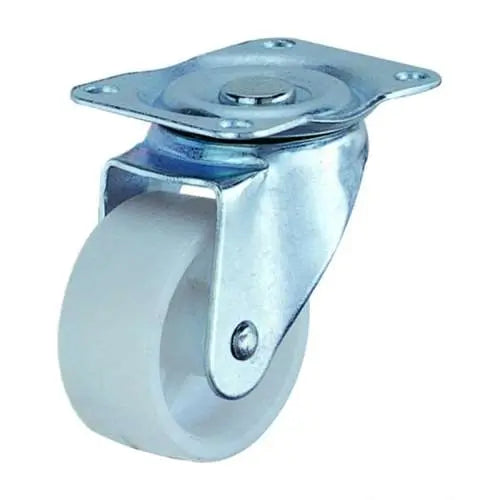

40mm Caster 44 lbs Plastic Top Plate
  • Item Name: 40mm-Caster-004
  • Wheel Diameter: 40mm
  • Wheel Width: 17mm
  • Overall Height: 54mm
  • Overall Height Inch: 2.126"
  • Mounting Type: Top Plate
  • Top Plate Size: 45mm x 40mm
  • Hole distance: 35mm x 28.5mm
  • Wheel Core: Plastic
  • Tire: Plastic
  • Load Capacity: 44 lb
  • Temperature Range: -40 to 180 F

  • 40mm-Caster-004 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This wheel caster has a wheel diameter of 40mm or 1.575" inch in inches. The wheel has a width of 17mm=.669" inch. The Caster with the wheel from end to end is 54mm = 2.126" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 45mm x 40mm with the holes distance of 35mm x 28.5mm. The Delrin bearing design will enable the Plastic tire to roll easily with a core made of Plastic. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 44 lb with a type. Temperature range = -40 to 180 F. Remember, you will have to buy the 40mm-Caster-004 in order to have it :).
