KCW Casters

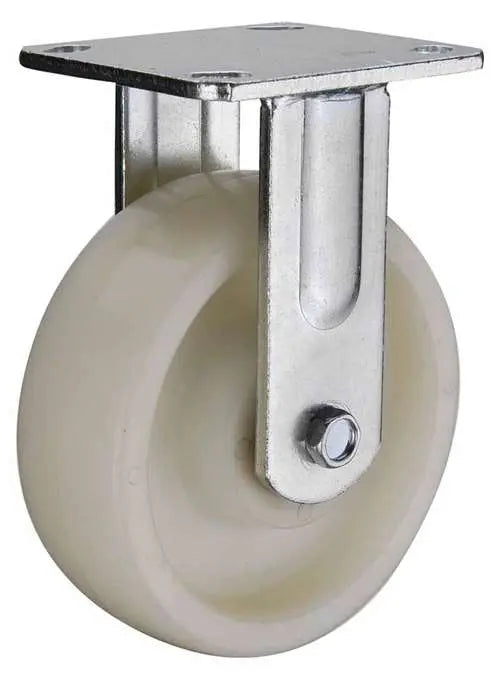

5" Inch Caster 1543 lbs Fixed Polyamide (Nylon) Top Plate

5" Inch Caster 1543 lbs Fixed Polyamide (Nylon) Top Plate

Regular price $27.11 USD
Regular price Sale price $27.11 USD
Sale Sold out
SKU: 5inch-Caster-003
5" Inch Caster 1543 lbs Fixed Polyamide (Nylon) Top Plate
  • Item Name: 5inch-Caster-003
  • Wheel Diameter: 125mm
  • Wheel Width: 50mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 164mm
  • Overall Height Inch: 6.457"
  • Mounting Type: Top Plate
  • Top Plate Size: 115mm x 110mm x 6mm
  • Hole distance: 72mm x 85mm
  • Wheel Core: Polyamide (Nylon)
  • Tire: Polyamide (Nylon)
  • Bearing type: Double ball beaing
  • Load Capacity: 1543 lb
  • Mounting: Fixed
  • Temperature Range: -40 to 180 F

  • You need 5inch-Caster-003 to have your office desk, equipment or even a machine to easily roll them around. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 164mm/6.457" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 110mm x 6mm and holes distance of 72mm x 85mm. The caster core is made of Polyamide (Nylon) and has a Polyamide (Nylon) tire with a low friction Double ball beaing. Each caster will carry the load of 1543 lb and is Fixed type. The temperature range is -40 to 180 F. Enjoy our 5inch-Caster-003, we wish all the best in your project.
