5" Inch Caster 1543 lbs Fixed Polypropylene Top Plate
5" Inch Caster 1543 lbs Fixed Polypropylene Top Plate

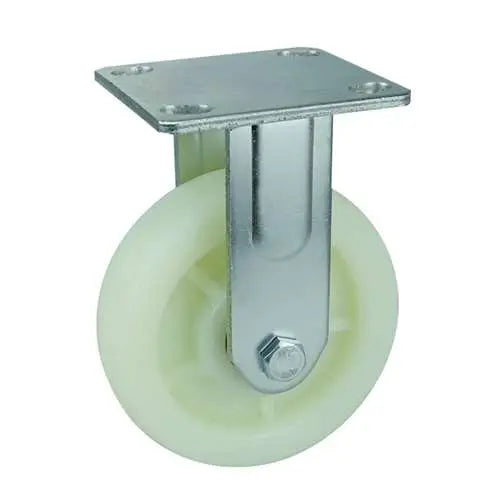

Mounting 5inch-Caster-042 is the solution of making your project to move around by pushing. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. The wheel has a width of 45mm=1.772" inch. The overall height of the caster is 164mm or 6.457" inch. Mounted via a Top Plate that has the size of 115mm x 110mm x 6mm and the holes distance of 72mm x 85mm. Low drag was achieved by a Polypropylene core on a Polypropylene tire spinning freely with a Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 1543 lb with a Fixed type. Temperature range = -40 to 180 F. Buy the 5inch-Caster-042 now, just add the quantity to basket and click on Checkout.
