KCW Casters

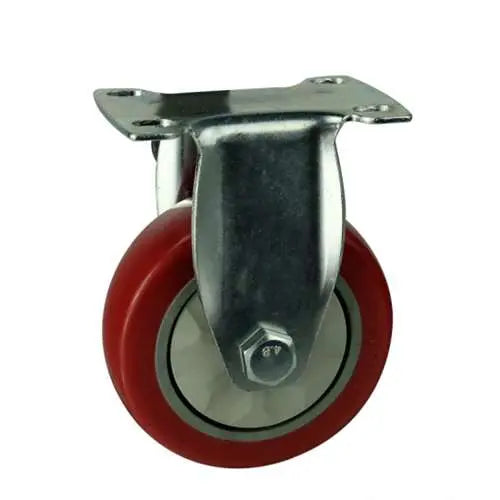

5" Inch Caster 176 lbs Rigid Polyvinyl Chloride Top Plate

5" Inch Caster 176 lbs Rigid Polyvinyl Chloride Top Plate

Regular price $5.09 USD
Regular price Sale price $5.09 USD
Sale Sold out
SKU: 5inch-Caster-011
5" Inch Caster 176 lbs Rigid Polyvinyl Chloride Top Plate
  • Item Name: 5inch-Caster-011
  • Wheel Diameter: 125mm
  • Wheel Width: 30mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 155mm
  • Overall Height Inch: 6.102"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 45mm x 72mm
  • Wheel Core: Polyvinyl Chloride
  • Tire: Polyvinyl Chloride
  • Bearing type: Ball bearing
  • Load Capacity: 176 lb
  • Mounting: Rigid
  • Temperature Range: -40 to 180 F

  • Imagine your office chair has no wheel caster, you would be carrying it right and left, install 5inch-Caster-011 instead. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The thickness of the wheel is 30mm or 1.181" inch. The overall height of the caster is 155mm or 6.102" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 45mm x 72mm. Low drag was achieved by a Polyvinyl Chloride core on a Polyvinyl Chloride tire spinning freely with a Ball bearing. Each caster will carry the load of 176 lb and is Rigid type. Temperature range = -40 to 180 F. Remember, you will have to buy the 5inch-Caster-011 in order to have it :).
