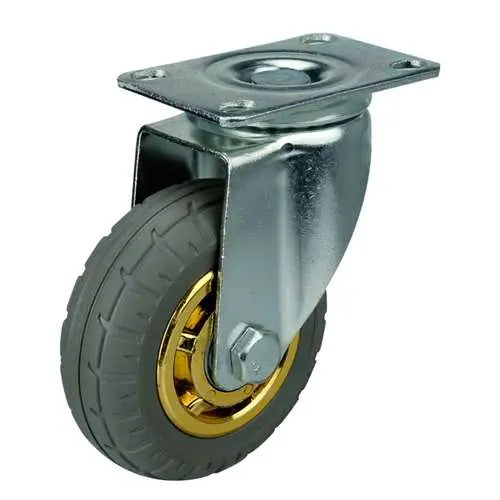

5" Inch Caster 176 lbs Swivel Rubber Top Plate

You need 5inch-Swivel-Caster-046 to have your office desk, equipment or even a machine to easily roll them around. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. The thickness of the wheel is 35mm or 1.378" inch. The overall height of the caster is 157mm or 6.181" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Low drag was achieved by a Rubber core on a Rubber tire spinning freely with a Ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 176 lb with a Swivel type. The temperature range is -40 to 180 F. Remember, you will have to buy the 5inch-Swivel-Caster-046 in order to have it :).
