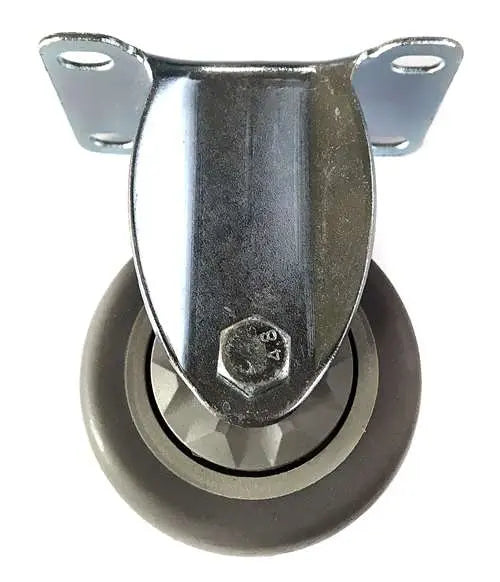

5" Inch Caster 220 lbs Fixed Thermoplastic Rubber Top Plate
5" Inch Caster 220 lbs Fixed Thermoplastic Rubber Top Plate
Couldn't load pickup availability
Wheel casters like the 5inch-Caster-012 are used to roll your built machine or equipment back and forth. This caster is rolled on a wheel that has 125mm diameter/4.921" inch inches. Dimensions of the caster wheel is 30mm (1.181" inch). The overall height of the caster is 155mm or 6.102" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 73mm x 45mm. The caster core is made of Thermoplastic Rubber and has a Thermoplastic Rubber tire with a low friction Ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 220 lb with a Fixed type. Temperature range = -40 to 180 F. Remember, you will have to buy the 5inch-Caster-012 in order to have it :).
