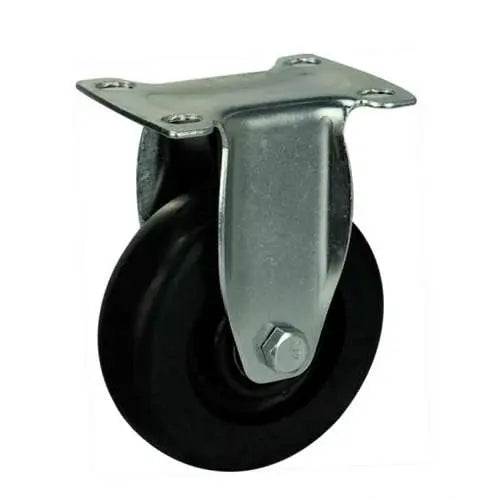

5" Inch Caster 220 lbs Rigid Phenolic and 0-250ºC Top Plate

5" Inch Caster 220 lbs Rigid Phenolic and 0-250ºC Top Plate

Item Name: 5inch-Caster-036

Wheel Diameter: 125mm

Wheel Width: 30mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 155mm

Overall Height Inch: 6.102"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Phenolic and 0-250ºC

Tire: Phenolic and 0-250ºC

Bearing type: Double ball bearing

Load Capacity: 220 lb

Mounting: Rigid

Temperature Range: -40 to 180 F

Mounting the 5inch-Caster-036 Wheel Caster can make your life easier, push or pull your new project on wheels. This caster is rolled on a wheel that has 125mm diameter/4.921" inch inches. Dimensions of the caster wheel is 30mm (1.181" inch). The caster dimensions heightwise is 155mm/6.102" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 45mm x 72mm. Low drag was achieved by a Phenolic and 0-250ºC core on a Phenolic and 0-250ºC tire spinning freely with a Double ball bearing. Each caster will carry the load of 220 lb and is Rigid type. Temperature range = -40 to 180 F. Buy the 5inch-Caster-036 now, just add the quantity to basket and click on Checkout.
