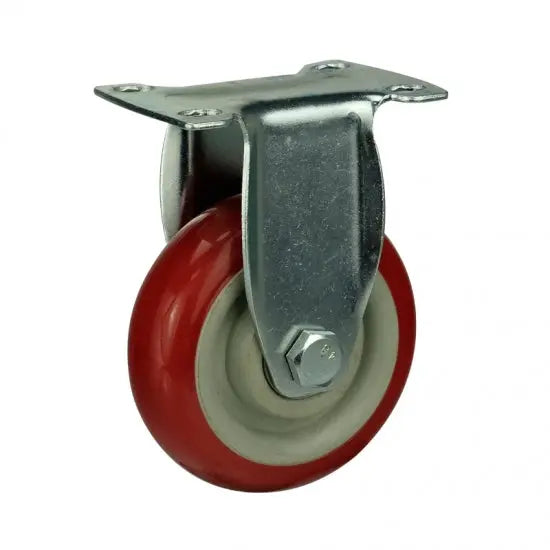

5" Inch Caster 220 lbs Rigid Polyvinyl Chloride Top Plate

5" Inch Caster 220 lbs Rigid Polyvinyl Chloride Top Plate

Item Name: 5inch-Caster-026

Wheel Diameter: 125mm

Wheel Width: 30mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 155mm

Overall Height Inch: 6.102"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 73mm x 45mm

Wheel Core: Polyvinyl Chloride

Tire: Polyvinyl Chloride

Bearing type: Double ball bearing

Load Capacity: 220 lb

Mounting: Rigid

Temperature Range: -40 to 180 F

You need 5inch-Caster-026 to have your office desk, equipment or even a machine to easily roll them around. This caster is rolled on a wheel that has 125mm diameter/4.921" inch inches. The thickness of the wheel is 30mm or 1.181" inch. The Caster with the wheel from end to end is 155mm = 6.102" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 73mm x 45mm. The caster core is made of Polyvinyl Chloride and has a Polyvinyl Chloride tire with a low friction Double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 220 lb with a Rigid type. Temperature range = -40 to 180 F. Buy the 5inch-Caster-026 now, just add the quantity to basket and click on Checkout.
