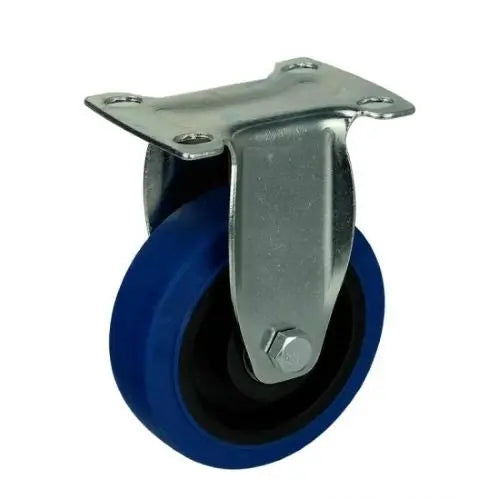

5" Inch Caster 220 lbs Rigid Thermoplastic Rubber Top Plate
5" Inch Caster 220 lbs Rigid Thermoplastic Rubber Top Plate
Couldn't load pickup availability
Mounting the 5inch-Caster-009 Wheel Caster can make your life easier, push or pull your new project on wheels. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. The wheel has a width of 30mm=1.181" inch. The overall height of the caster is 155mm or 6.102" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 45mm x 72mm. The Double ball bearing design will enable the Thermoplastic Rubber tire to roll easily with a core made of Thermoplastic Rubber. Each caster will carry the load of 220 lb and is Rigid type. The temperature range is -40 to 180 F. Buy the 5inch-Caster-009 now, just add the quantity to basket and click on Checkout.
