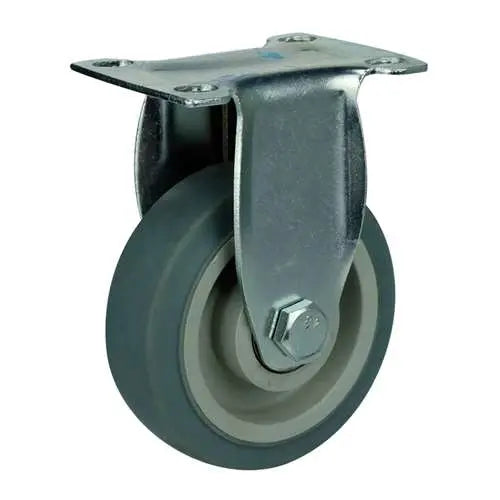

5" Inch Caster 220 lbs Rigid Thermoplastic Rubber Top Plate

5" Inch Caster 220 lbs Rigid Thermoplastic Rubber Top Plate

Item Name: 5inch-Caster-027

Wheel Diameter: 125mm

Wheel Width: 30mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 155mm

Overall Height Inch: 6.102"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Thermoplastic Rubber

Tire: Thermoplastic Rubber

Bearing type: Double ball bearing

Load Capacity: 220 lb

Mounting: Rigid

Temperature Range: -40 to 180 F

Wheel casters like the 5inch-Caster-027 are used to roll your built machine or equipment back and forth. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The thickness of the wheel is 30mm or 1.181" inch. The Caster with the wheel from end to end is 155mm = 6.102" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Low drag was achieved by a Thermoplastic Rubber core on a Thermoplastic Rubber tire spinning freely with a Double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 220 lb with a Rigid type. Temperature range = -40 to 180 F. Enjoy our 5inch-Caster-027, we wish all the best in your project.
