KCW Casters

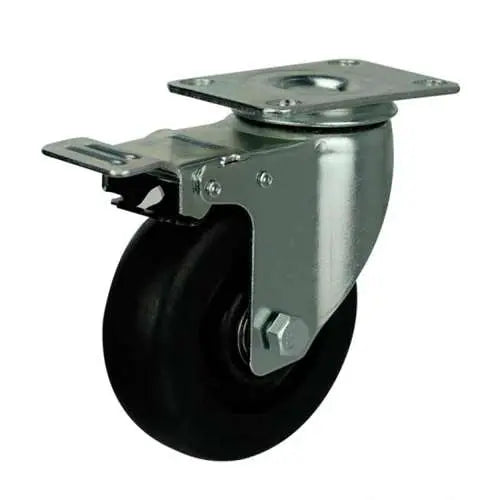

5" Inch Caster 220 lbs Swivel and Upper Locking Phenolic and 0-250ºC Top Plate

5" Inch Caster 220 lbs Swivel and Upper Locking Phenolic and 0-250ºC Top Plate

Regular price $10.38 USD
Regular price Sale price $10.38 USD
Sale Sold out
SKU: 5inch-Lock-Swivel-Caster-033
5" Inch Caster 220 lbs Swivel and Upper Brake Phenolic and 0-250ºC Top Plate
  • Item Name: 5inch-Lock-Swivel-Caster-033
  • Wheel Diameter: 125mm
  • Wheel Width: 30mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 155mm
  • Overall Height Inch: 6.102"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 45mm x 72mm
  • Wheel Core: Phenolic and 0-250ºC
  • Tire: Phenolic and 0-250ºC
  • Bearing type: Double ball bearing
  • Load Capacity: 220 lb
  • Mounting: Swivel and Upper Locking
  • Temperature Range: -40 to 180 F

  • 5inch-Lock-Swivel-Caster-033 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This caster is rolled on a wheel that has 125mm diameter/4.921" inch inches. Dimensions of the caster wheel is 30mm (1.181" inch). The Caster with the wheel from end to end is 155mm = 6.102" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 45mm x 72mm. The Double ball bearing design will enable the Phenolic and 0-250ºC tire to roll easily with a core made of Phenolic and 0-250ºC. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 220 lb with a Swivel and Upper Locking type. The temperature range is -40 to 180 F. Buy the 5inch-Lock-Swivel-Caster-033 now, just add the quantity to basket and click on Checkout.
