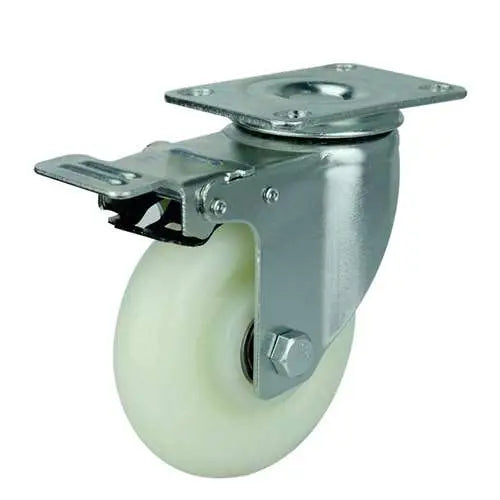

5" Inch Caster 220 lbs Swivel and Upper Locking Polypropylene Top Plate

5" Inch Caster 220 lbs Swivel and Upper Brake Polypropylene Top Plate

Item Name: 5inch-Lock-Swivel-Caster-034

Wheel Diameter: 125mm

Wheel Width: 30mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 155mm

Overall Height Inch: 6.102"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Polypropylene

Tire: Polypropylene

Bearing type: Double ball bearing

Load Capacity: 220 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Mounting the 5inch-Lock-Swivel-Caster-034 Wheel Caster can make your life easier, push or pull your new project on wheels. This caster is rolled on a wheel that has 125mm diameter/4.921" inch inches. The thickness of the wheel is 30mm or 1.181" inch. The caster dimensions heightwise is 155mm/6.102" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 45mm x 72mm. Rolling with a wheel core material of Polypropylene and a Polypropylene tire rolled over Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 220 lb with a Swivel and Upper Locking type. The temperature range is -40 to 180 F. Remember, you will have to buy the 5inch-Lock-Swivel-Caster-034 in order to have it :).
