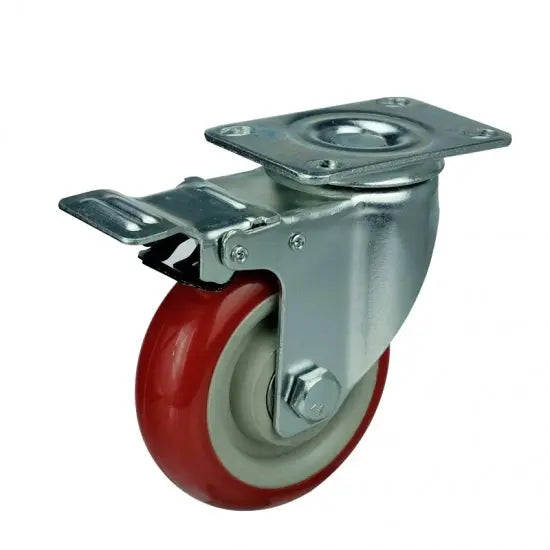

5" Inch Caster 220 lbs Swivel and Upper Locking Polyvinyl Chloride Top Plate

5" Inch Caster 220 lbs Swivel and Upper Brake Polyvinyl Chloride Top Plate

Item Name: 5inch-Lock-Swivel-Caster-023

Wheel Diameter: 125mm

Wheel Width: 30mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 155mm

Overall Height Inch: 6.102"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 73mm x 45mm

Wheel Core: Polyvinyl Chloride

Tire: Polyvinyl Chloride

Bearing type: Double ball bearing

Load Capacity: 220 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Mounting the 5inch-Lock-Swivel-Caster-023 Wheel Caster can make your life easier, push or pull your new project on wheels. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The thickness of the wheel is 30mm or 1.181" inch. The Caster with the wheel from end to end is 155mm = 6.102" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 73mm x 45mm. Low drag was achieved by a Polyvinyl Chloride core on a Polyvinyl Chloride tire spinning freely with a Double ball bearing. Each caster will carry the load of 220 lb and is Swivel and Upper Locking type. Temperature range = -40 to 180 F. Buy the 5inch-Lock-Swivel-Caster-023 now, just add the quantity to basket and click on Checkout.
