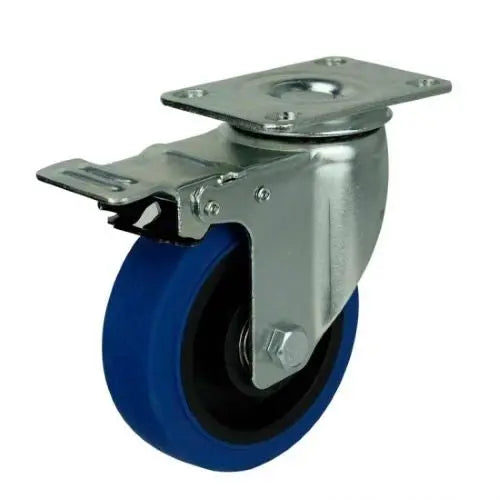

5" Inch Caster 220 lbs Swivel and Upper Locking Thermoplastic Rubber Top Plate

5" Inch Caster 220 lbs Swivel and Upper Brake Thermoplastic Rubber Top Plate

Item Name: 5inch-Lock-Swivel-Caster-012

Wheel Diameter: 125mm

Wheel Width: 30mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 155mm

Overall Height Inch: 6.102"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Thermoplastic Rubber

Tire: Thermoplastic Rubber

Bearing type: Double ball bearing

Load Capacity: 220 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Imagine your office chair has no wheel caster, you would be carrying it right and left, install 5inch-Lock-Swivel-Caster-012 instead. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. The thickness of the wheel is 30mm or 1.181" inch. The overall height of the caster is 155mm or 6.102" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 45mm x 72mm. Low drag was achieved by a Thermoplastic Rubber core on a Thermoplastic Rubber tire spinning freely with a Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 220 lb with a Swivel and Upper Locking type. The temperature range is -40 to 180 F. Enjoy our 5inch-Lock-Swivel-Caster-012, we wish all the best in your project.
