KCW Casters

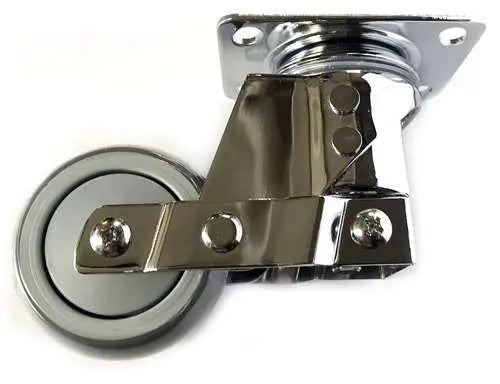

5" Inch Caster 220 lbs Swivel Polyurethane Top Plate

5" Inch Caster 220 lbs Swivel Polyurethane Top Plate

Regular price $20.92 USD
Regular price Sale price $20.92 USD
Sale Sold out
SKU: 5inch-Swivel-Caster-005
5" Inch Caster 220 lbs Swivel Polyurethane Top Plate
  • Item Name: 5inch-Swivel-Caster-005
  • Wheel Diameter: 125mm
  • Wheel Width: 32mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 163mm
  • Overall Height Inch: 6.417"
  • Mounting Type: Top Plate
  • Top Plate Size: 95mm x 70mm
  • Hole distance: 75mm x 52mm
  • Wheel Core: Polyurethane
  • Tire: Polyurethane
  • Bearing type: Ball bearing
  • Load Capacity: 220 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Imagine your office chair has no wheel caster, you would be carrying it right and left, install 5inch-Swivel-Caster-005 instead. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. Dimensions of the caster wheel is 32mm (1.260" inch). The caster dimensions heightwise is 163mm/6.417" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 95mm x 70mm with the holes distance of 75mm x 52mm. The caster core is made of Polyurethane and has a Polyurethane tire with a low friction Ball bearing. Bearing in mind that every caster wheel has the load capacity of 220 lb with a Swivel type. The temperature range is -40 to 180 F. Enjoy our 5inch-Swivel-Caster-005, we wish all the best in your project.
