KCW Casters

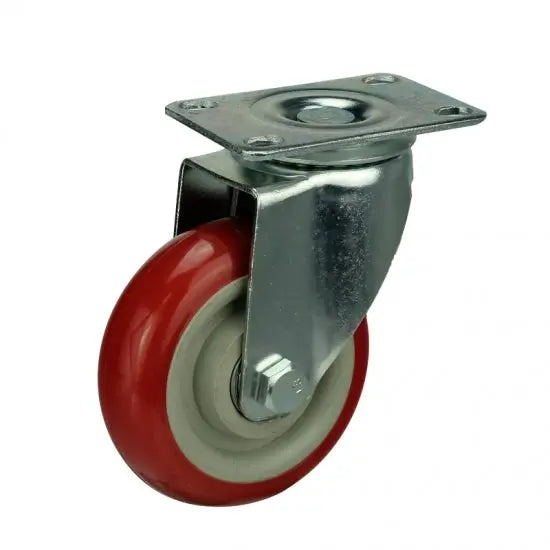

5" Inch Caster 220 lbs Swivel Polyvinyl Chloride Top Plate

5" Inch Caster 220 lbs Swivel Polyvinyl Chloride Top Plate

Regular price $5.71 USD
Regular price Sale price $5.71 USD
Sale Sold out
SKU: 5inch-Swivel-Caster-031
5" Inch Caster 220 lbs Swivel Polyvinyl Chloride Top Plate
  • Item Name: 5inch-Swivel-Caster-031
  • Wheel Diameter: 125mm
  • Wheel Width: 30mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 155mm
  • Overall Height Inch: 6.102"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 73mm x 45mm
  • Wheel Core: Polyvinyl Chloride
  • Tire: Polyvinyl Chloride
  • Bearing type: Double ball bearing
  • Load Capacity: 220 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • You need 5inch-Swivel-Caster-031 to have your office desk, equipment or even a machine to easily roll them around. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The thickness of the wheel is 30mm or 1.181" inch. The overall height of the caster is 155mm or 6.102" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 73mm x 45mm. Rolling with a wheel core material of Polyvinyl Chloride and a Polyvinyl Chloride tire rolled over Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 220 lb with a Swivel type. The temperature range is -40 to 180 F. Remember, you will have to buy the 5inch-Swivel-Caster-031 in order to have it :).
