KCW Casters

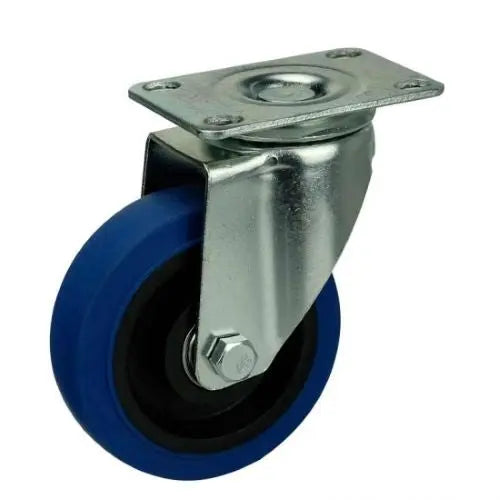

5" Inch Caster 220 lbs Swivel Thermoplastic Rubber Top Plate
5" Inch Caster 220 lbs Swivel Thermoplastic Rubber Top Plate
Couldn't load pickup availability
Wheel casters like the 5inch-Swivel-Caster-014 are used to roll your built machine or equipment back and forth. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The wheel has a width of 30mm=1.181" inch. The caster dimensions heightwise is 155mm/6.102" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Rolling with a wheel core material of Thermoplastic Rubber and a Thermoplastic Rubber tire rolled over Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 220 lb with a Swivel type. The temperature range is -40 to 180 F. Enjoy our 5inch-Swivel-Caster-014, we wish all the best in your project.
