KCW Casters

5" Inch Caster 243 lbs Swivel Polyurethane

5" Inch Caster 243 lbs Swivel Polyurethane

Regular price $16.32 USD
Regular price Sale price $16.32 USD
Sale Sold out
SKU: 5inch-Swivel-Caster-043

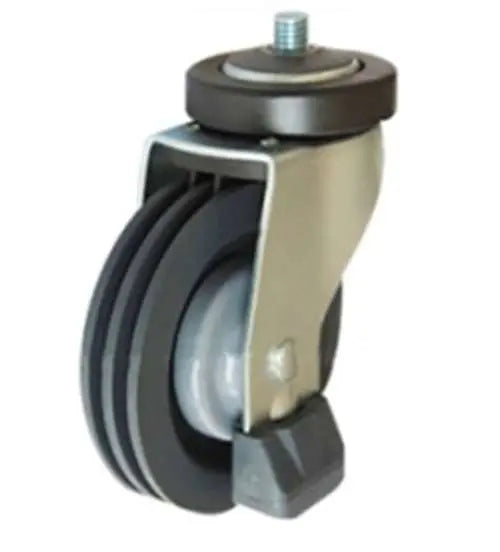

5" Inch Caster 243 lbs Swivel Polyurethane
  • Item Name: 5inch-Swivel-Caster-043
  • Wheel Diameter: 125mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 155mm
  • Overall Height Inch: 6.102"
  • Wheel width: 32mm
  • Stem size: ?12mm x 15/30mm
  • Wheel Core: Polyurethane
  • Tire: Polyurethane
  • Bearing type: Ball bearing
  • Load Capacity: 243 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • 5inch-Swivel-Caster-043 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. The thickness of the wheel is 125mm or 4.921" inch. The Caster with the wheel from end to end is 155mm = 6.102" inch. Mounted via a that has the size of 95mm x 70mm and the holes distance of 75mm x 52mm. Rolling with a wheel core material of Polyurethane and a Polyurethane tire rolled over Ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 243 lb with a Swivel type. The temperature range is -40 to 180 F. Remember, you will have to buy the 5inch-Swivel-Caster-043 in order to have it :).
