KCW Casters

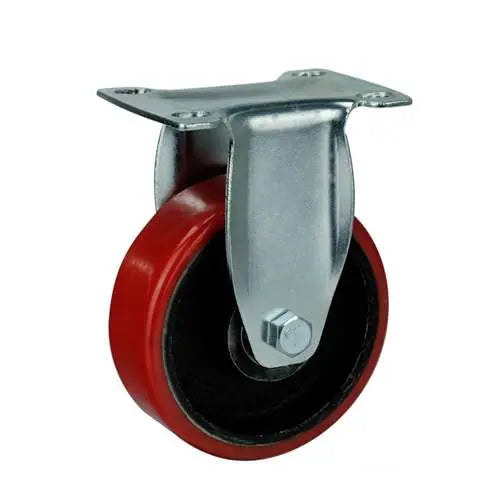

5" Inch Caster 331 lbs Rigid Iron and Polyurethane Top Plate

5" Inch Caster 331 lbs Rigid Iron and Polyurethane Top Plate

Regular price $13.37 USD
Regular price Sale price $13.37 USD
Sale Sold out
SKU: 5inch-Caster-025
5" Inch Caster 331 lbs Rigid Iron and Polyurethane Top Plate
  • Item Name: 5inch-Caster-025
  • Wheel Diameter: 125mm
  • Wheel Width: 32mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 156mm
  • Overall Height Inch: 6.142"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 45mm x 72mm
  • Wheel Core: Iron and Polyurethane
  • Tire: Iron and Polyurethane
  • Bearing type: Double ball bearing
  • Load Capacity: 331 lb
  • Mounting: Rigid
  • Temperature Range: -40 to 180 F

  • You need 5inch-Caster-025 to have your office desk, equipment or even a machine to easily roll them around. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The wheel has a width of 32mm=1.260" inch. The overall height of the caster is 156mm or 6.142" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 45mm x 72mm. Rolling with a wheel core material of Iron and Polyurethane and a Iron and Polyurethane tire rolled over Double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 331 lb with a Rigid type. The temperature range is -40 to 180 F. Enjoy our 5inch-Caster-025, we wish all the best in your project.
