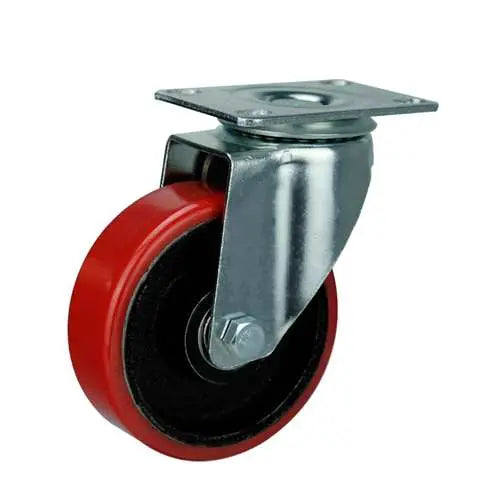

5" Inch Caster 331 lbs Swivel Iron and Polyurethane Top Plate

5" Inch Caster 331 lbs Swivel Iron and Polyurethane Top Plate

Item Name: 5inch-Swivel-Caster-030

Wheel Diameter: 125mm

Wheel Width: 32mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 156mm

Overall Height Inch: 6.142"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Iron and Polyurethane

Tire: Iron and Polyurethane

Bearing type: Double ball bearing

Load Capacity: 331 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

5inch-Swivel-Caster-030 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The wheel has a width of 32mm=1.260" inch. The overall height of the caster is 156mm or 6.142" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. The Double ball bearing design will enable the Iron and Polyurethane tire to roll easily with a core made of Iron and Polyurethane. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 331 lb with a Swivel type. Temperature range = -40 to 180 F. Remember, you will have to buy the 5inch-Swivel-Caster-030 in order to have it :).
