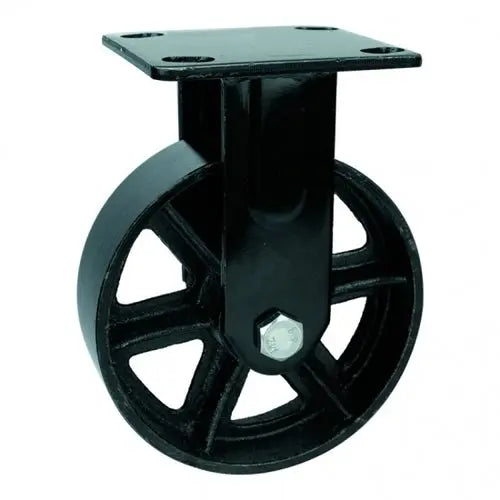

5" Inch Caster 507 lbs Fixed Black Cast iron Top Plate

Don't think too much, use 5inch-Caster-039 to get your DIY move and manuver around. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The wheel has a width of 50mm=1.969" inch. The overall height of the caster is 167mm or 6.575" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Rolling with a wheel core material of Black Cast iron and a Black Cast iron tire rolled over Roller bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 507 lb with a Fixed type. The temperature range is -40 to 180 F. Enjoy our 5inch-Caster-039, we wish all the best in your project.
