KCW Casters

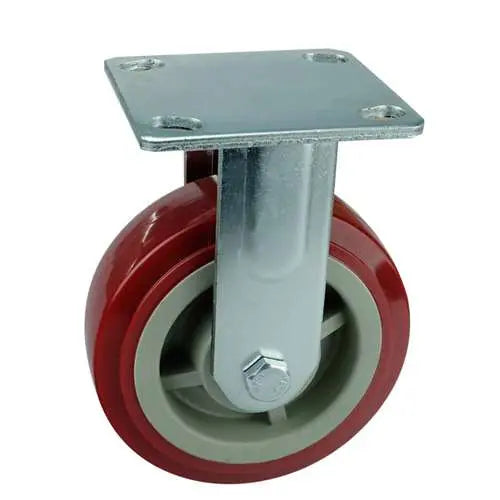

5" Inch Caster 507 lbs Fixed Polyurethane Top Plate

5" Inch Caster 507 lbs Fixed Polyurethane Top Plate

Regular price $14.82 USD
Regular price Sale price $14.82 USD
Sale Sold out
SKU: 5inch-Caster-015
5" Inch Caster 507 lbs Fixed Polyurethane Top Plate
  • Item Name: 5inch-Caster-015
  • Wheel Diameter: 125mm
  • Wheel Width: 50mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 167mm
  • Overall Height Inch: 6.575"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Polyurethane
  • Tire: Polyurethane
  • Bearing type: Double ball beaing
  • Load Capacity: 507 lb
  • Mounting: Fixed
  • Temperature Range: -40 to 180 F

  • You need 5inch-Caster-015 to have your office desk, equipment or even a machine to easily roll them around. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 167mm/6.575" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polyurethane tire to roll easily with a core made of Polyurethane. Bearing in mind that every caster wheel has the load capacity of 507 lb with a Fixed type. The temperature range is -40 to 180 F. Enjoy our 5inch-Caster-015, we wish all the best in your project.
