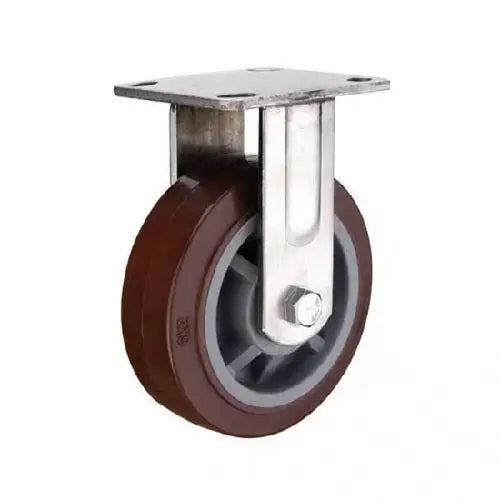

5" Inch Caster 507 lbs Fixed Stainless steel fork and Polyurethane Top Plate

5" Inch Caster 507 lbs Fixed Stainless steel fork and Polyurethane Top Plate

Item Name: 5inch-Caster-008

Wheel Diameter: 125mm

Wheel Width: 50mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 166mm

Overall Height Inch: 6.535"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Stainless steel fork and Polyurethane

Tire: Stainless steel fork and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 507 lb

Mounting: Fixed

Temperature Range: -40 to 180 F

Whatever you are building needed to be on wheels, here come the 5inch-Caster-008. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The wheel has a width of 50mm=1.969" inch. The overall height of the caster is 166mm or 6.535" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Rolling with a wheel core material of Stainless steel fork and Polyurethane and a Stainless steel fork and Polyurethane tire rolled over Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 507 lb with a Fixed type. The temperature range is -40 to 180 F. Enjoy our 5inch-Caster-008, we wish all the best in your project.
