KCW Casters

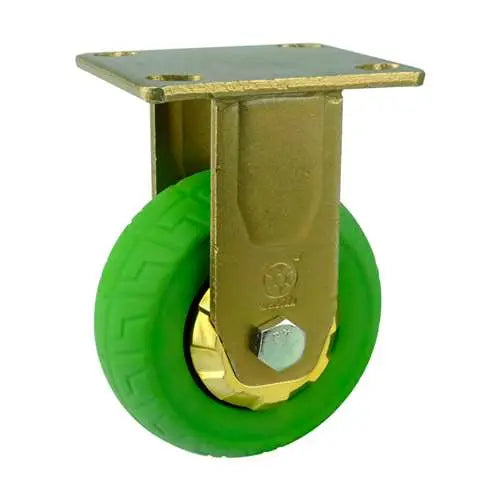

5" Inch Caster 507 lbs Fixed Thermoplastic Rubber Top Plate

5" Inch Caster 507 lbs Fixed Thermoplastic Rubber Top Plate

Regular price $22.18 USD
Regular price Sale price $22.18 USD
Sale Sold out
SKU: 5inch-Caster-004
5" Inch Caster 507 lbs Fixed Thermoplastic Rubber Top Plate
  • Item Name: 5inch-Caster-004
  • Wheel Diameter: 125mm
  • Wheel Width: 50mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 167mm
  • Overall Height Inch: 6.575"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Thermoplastic Rubber
  • Tire: Thermoplastic Rubber
  • Bearing type: Double ball beaing
  • Load Capacity: 507 lb
  • Mounting: Fixed
  • Temperature Range: -40 to 180 F

  • Mounting 5inch-Caster-004 is the solution of making your project to move around by pushing. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 167mm/6.575" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Low drag was achieved by a Thermoplastic Rubber core on a Thermoplastic Rubber tire spinning freely with a Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 507 lb with a Fixed type. Temperature range = -40 to 180 F. Remember, you will have to buy the 5inch-Caster-004 in order to have it :).
