KCW Casters

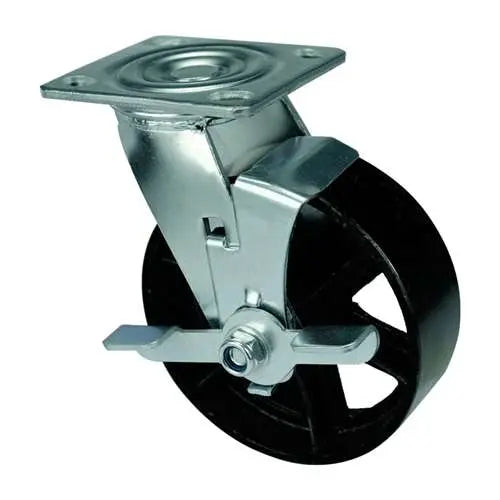

5" Inch Caster 507 lbs Swivel and Center Locking Cast iron Top Plate

5" Inch Caster 507 lbs Swivel and Center Locking Cast iron Top Plate

Regular price $20.61 USD
Regular price Sale price $20.61 USD
Sale Sold out
SKU: 5inch-Lock-Swivel-Caster-036
5" Inch Caster 507 lbs Swivel and Center Brake Cast iron Top Plate
  • Item Name: 5inch-Lock-Swivel-Caster-036
  • Wheel Diameter: 125mm
  • Wheel Width: 50mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 167mm
  • Overall Height Inch: 6.575"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Cast iron
  • Tire: Cast iron
  • Bearing type: Roller bearing
  • Load Capacity: 507 lb
  • Mounting: Swivel and Center Locking
  • Temperature Range: -40 to 180 F

  • Mounting the 5inch-Lock-Swivel-Caster-036 Wheel Caster can make your life easier, push or pull your new project on wheels. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 167mm/6.575" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. Low drag was achieved by a Cast iron core on a Cast iron tire spinning freely with a Roller bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 507 lb with a Swivel and Center Locking type. Temperature range = -40 to 180 F. Buy the 5inch-Lock-Swivel-Caster-036 now, just add the quantity to basket and click on Checkout.
