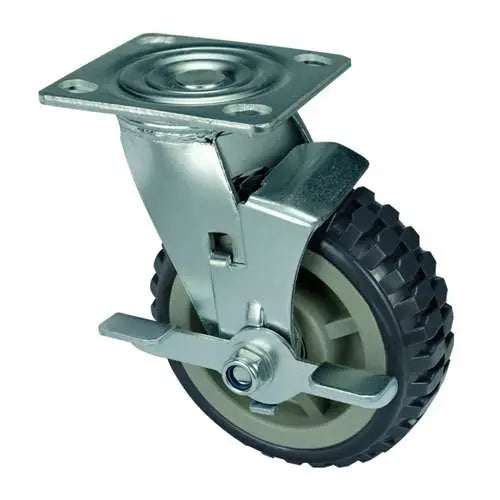

5" Inch Caster 507 lbs Swivel and Center Locking Polypropylene core and Polyurethane Top Plate

5" Inch Caster 507 lbs Swivel and Center Brake Polypropylene core and Polyurethane Top Plate

Item Name: 5inch-Lock-Swivel-Caster-008

Wheel Diameter: 125mm

Wheel Width: 50mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 167mm

Overall Height Inch: 6.575"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Polypropylene core and Polyurethane

Tire: Polypropylene core and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 507 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

Whatever you are building needed to be on wheels, here come the 5inch-Lock-Swivel-Caster-008. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The caster dimensions heightwise is 167mm/6.575" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Low drag was achieved by a Polypropylene core and Polyurethane core on a Polypropylene core and Polyurethane tire spinning freely with a Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 507 lb with a Swivel and Center Locking type. Last and not least the temperature range = -40 to 180 F. Buy the 5inch-Lock-Swivel-Caster-008 now, just add the quantity to basket and click on Checkout.
