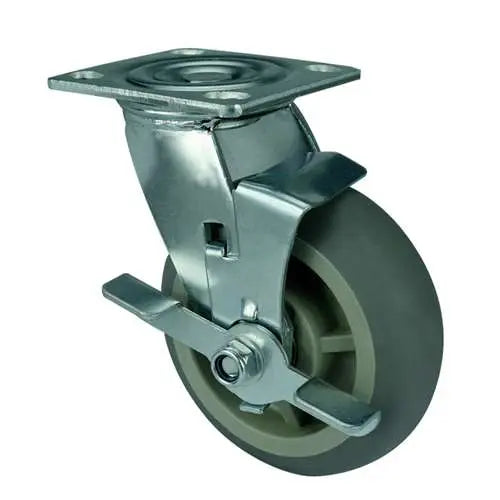

5" Inch Caster 507 lbs Swivel and Center Locking Polypropylene core and Thermoplastic Rubber Top Plate

5" Inch Caster 507 lbs Swivel and Center Brake Polypropylene core and Thermoplastic Rubber Top Plate

Item Name: 5inch-Lock-Swivel-Caster-007

Wheel Diameter: 125mm

Wheel Width: 50mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 166mm

Overall Height Inch: 6.535"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Polypropylene core and Thermoplastic Rubber

Tire: Polypropylene core and Thermoplastic Rubber

Bearing type: Double ball beaing

Load Capacity: 507 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

Mounting 5inch-Lock-Swivel-Caster-007 is the solution of making your project to move around by pushing. This caster is rolled on a wheel that has 125mm diameter/4.921" inch inches. The thickness of the wheel is 50mm or 1.969" inch. The Caster with the wheel from end to end is 166mm = 6.535" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Rolling with a wheel core material of Polypropylene core and Thermoplastic Rubber and a Polypropylene core and Thermoplastic Rubber tire rolled over Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 507 lb with a Swivel and Center Locking type. Last and not least the temperature range = -40 to 180 F. Enjoy our 5inch-Lock-Swivel-Caster-007, we wish all the best in your project.
