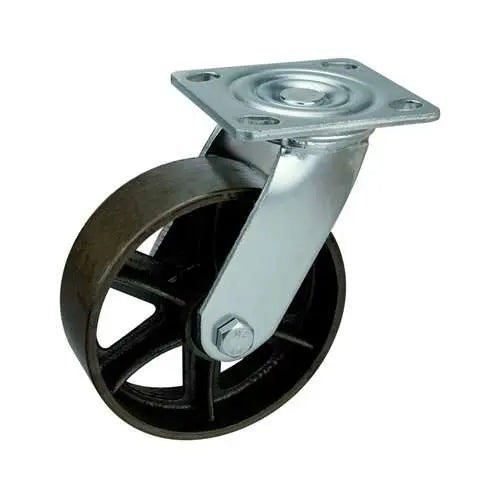

5" Inch Caster 507 lbs Swivel Cast iron Top Plate

5inch-Swivel-Caster-053 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 167mm/6.575" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. Low drag was achieved by a Cast iron core on a Cast iron tire spinning freely with a Roller bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 507 lb with a Swivel type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 5inch-Swivel-Caster-053 in order to have it :).
