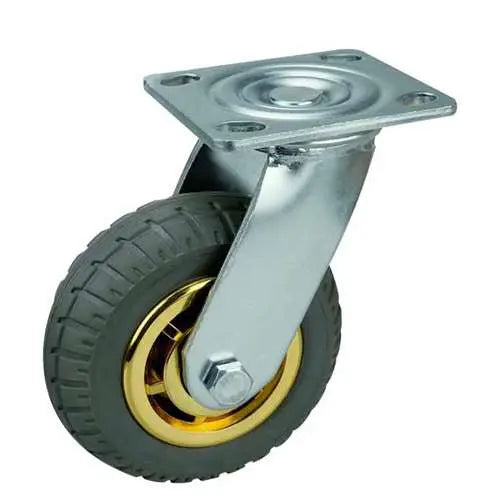

5" Inch Caster 507 lbs Swivel Polypropylene core and Rubber Top Plate

5" Inch Caster 507 lbs Swivel Polypropylene core and Rubber Top Plate

Regular price $14.40 USD
Regular price Sale price $14.40 USD
Sale Sold out
SKU: 5inch-Swivel-Caster-036
5" Inch Caster 507 lbs Swivel Polypropylene core and Rubber Top Plate
  • Item Name: 5inch-Swivel-Caster-036
  • Wheel Diameter: 125mm
  • Wheel Width: 53mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 168mm
  • Overall Height Inch: 6.614"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Polypropylene core and Rubber
  • Tire: Polypropylene core and Rubber
  • Bearing type: Double ball beaing
  • Load Capacity: 507 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • 5inch-Swivel-Caster-036 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. The wheel has a width of 53mm=2.087" inch. The Caster with the wheel from end to end is 168mm = 6.614" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polypropylene core and Rubber tire to roll easily with a core made of Polypropylene core and Rubber. Bearing in mind that every caster wheel has the load capacity of 507 lb with a Swivel type. Last and not least the temperature range = -40 to 180 F. Enjoy our 5inch-Swivel-Caster-036, we wish all the best in your project.
