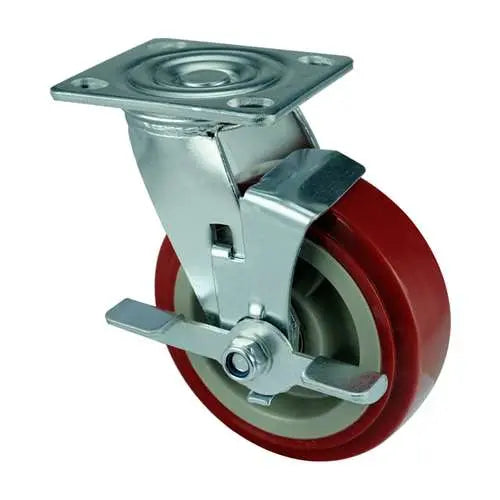

5" Inch Caster 507 lbs Swivel Polyvinyl Chloride Top Plate

5" Inch Caster 507 lbs Swivel Polyvinyl Chloride Top Plate

Item Name: 5inch-Swivel-Caster-010

Wheel Diameter: 125mm

Wheel Width: 50mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 166mm

Overall Height Inch: 6.535"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Polyvinyl Chloride

Tire: Polyvinyl Chloride

Bearing type: Double ball beaing

Load Capacity: 507 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

You need 5inch-Swivel-Caster-010 to have your office desk, equipment or even a machine to easily roll them around. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The wheel has a width of 50mm=1.969" inch. The Caster with the wheel from end to end is 166mm = 6.535" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polyvinyl Chloride tire to roll easily with a core made of Polyvinyl Chloride. Each caster will carry the load of 507 lb and is Swivel type. The temperature range is -40 to 180 F. Remember, you will have to buy the 5inch-Swivel-Caster-010 in order to have it :).
