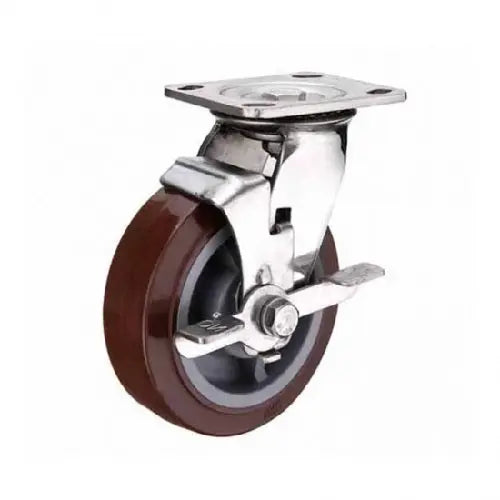

5" Inch Caster 507 lbs Swivel Stainless steel fork and Polyurethane Top Plate

5" Inch Caster 507 lbs Swivel Stainless steel fork and Polyurethane Top Plate

Item Name: 5inch-Swivel-Caster-003

Wheel Diameter: 125mm

Wheel Width: 50mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 166mm

Overall Height Inch: 6.535"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Stainless steel fork and Polyurethane

Tire: Stainless steel fork and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 507 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

5inch-Swivel-Caster-003 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 166mm/6.535" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The Double ball beaing design will enable the Stainless steel fork and Polyurethane tire to roll easily with a core made of Stainless steel fork and Polyurethane. Bearing in mind that every caster wheel has the load capacity of 507 lb with a Swivel type. Temperature range = -40 to 180 F. Remember, you will have to buy the 5inch-Swivel-Caster-003 in order to have it :).
