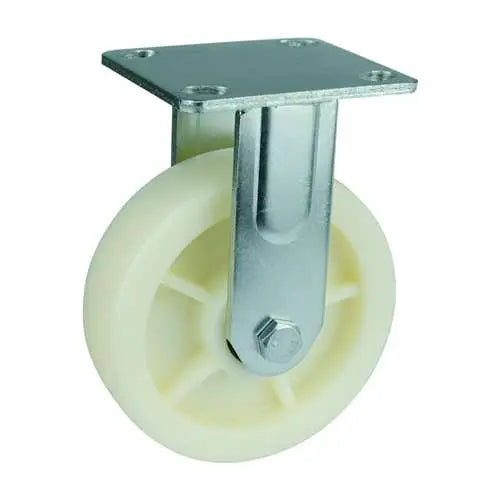

5" Inch Caster 617 lbs Fixed co-polypropylene Top Plate
5" Inch Caster 617 lbs Fixed co-polypropylene Top Plate
Mounting 5inch-Caster-041 is the solution of making your project to move around by pushing. This caster is rolled on a wheel that has 125mm diameter/4.921" inch inches. The thickness of the wheel is 45mm or 1.772" inch. The caster dimensions heightwise is 167mm/6.575" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. Rolling with a wheel core material of co-polypropylene and a co-polypropylene tire rolled over Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 617 lb with a Fixed type. Last and not least the temperature range = -40 to 180 F. Enjoy our 5inch-Caster-041, we wish all the best in your project.
