KCW Casters

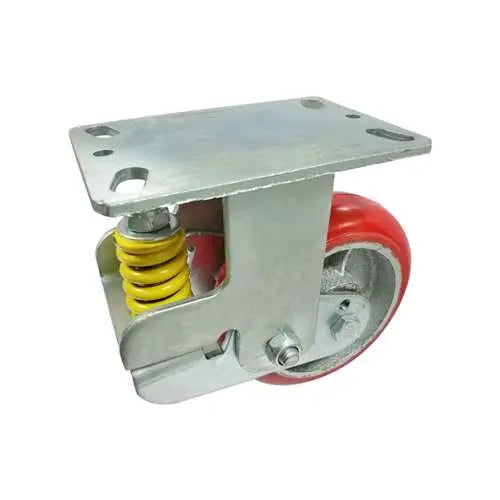

5" Inch Caster 617 lbs Fixed Polyurethane and Cast iron core Top Plate

5" Inch Caster 617 lbs Fixed Polyurethane and Cast iron core Top Plate

Regular price $22.57 USD
Regular price Sale price $22.57 USD
Sale Sold out
SKU: 5inch-Caster-002
5" Inch Caster 617 lbs Fixed Polyurethane and Cast iron core Top Plate
  • Item Name: 5inch-Caster-002
  • Wheel Diameter: 125mm
  • Wheel Width: 50mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 210mm
  • Overall Height Inch: 8.268"
  • Mounting Type: Top Plate
  • Top Plate Size: 140mm x 108mm
  • Hole distance: 105mm x 75mm
  • Wheel Core: Polyurethane and Cast iron core
  • Tire: Polyurethane and Cast iron core
  • Bearing type: Ball bearing
  • Load Capacity: 617 lb
  • Mounting: Fixed
  • Temperature Range: -40 to 180 F

  • Mounting 5inch-Caster-002 is the solution of making your project to move around by pushing. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. Dimensions of the caster wheel is 50mm (1.969" inch). The overall height of the caster is 210mm or 8.268" inch. Mounted via a Top Plate that has the size of 140mm x 108mm and the holes distance of 105mm x 75mm. Rolling with a wheel core material of Polyurethane and Cast iron core and a Polyurethane and Cast iron core tire rolled over Ball bearing. Each caster will carry the load of 617 lb and is Fixed type. Temperature range = -40 to 180 F. Enjoy our 5inch-Caster-002, we wish all the best in your project.
