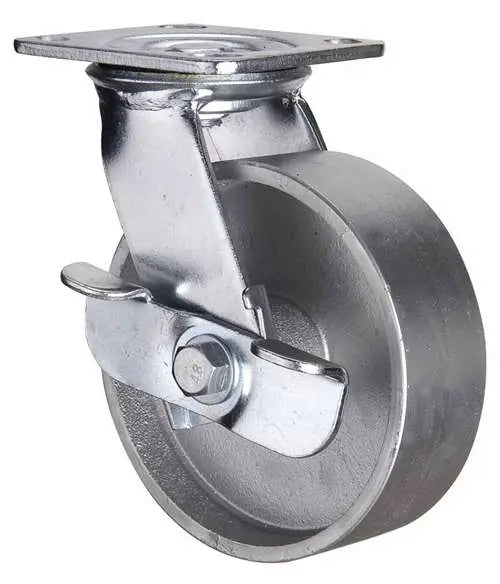

5" Inch Caster 617 lbs Swivel and Center Locking Cast Iron Top Plate

5" Inch Caster 617 lbs Swivel and Center Brake Cast Iron Top Plate

Item Name: 5inch-Lock-Swivel-Caster-030

Wheel Diameter: 125mm

Wheel Width: 50mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 166mm

Overall Height Inch: 6.535"

Mounting Type: Top Plate

Top Plate Size: 115mm x 100mm x 5.5mm

Hole distance: 72mm x 85mm

Wheel Core: Cast Iron

Tire: Cast Iron

Bearing type: Roller bearing

Load Capacity: 617 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

Mounting 5inch-Lock-Swivel-Caster-030 is the solution of making your project to move around by pushing. This caster is rolled on a wheel that has 125mm diameter/4.921" inch inches. The wheel has a width of 50mm=1.969" inch. The overall height of the caster is 166mm or 6.535" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 100mm x 5.5mm and holes distance of 72mm x 85mm. Low drag was achieved by a Cast Iron core on a Cast Iron tire spinning freely with a Roller bearing. Bearing in mind that every caster wheel has the load capacity of 617 lb with a Swivel and Center Locking type. Last and not least the temperature range = -40 to 180 F. Enjoy our 5inch-Lock-Swivel-Caster-030, we wish all the best in your project.
