KCW Casters

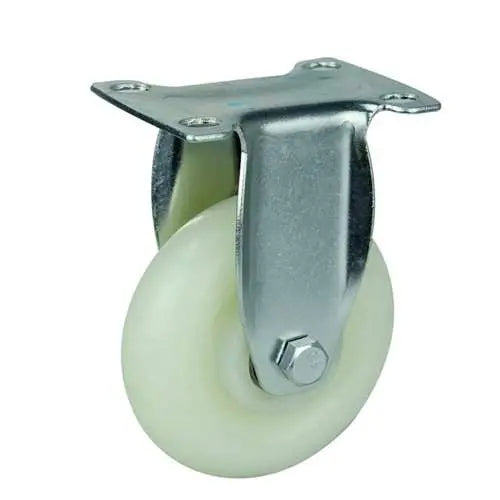

5" Inch Caster 661 lbs Fixed Polypropylene Top Plate

5" Inch Caster 661 lbs Fixed Polypropylene Top Plate

Regular price $11.06 USD
Regular price Sale price $11.06 USD
Sale Sold out
SKU: 5inch-Caster-028
5" Inch Caster 661 lbs Fixed Polypropylene Top Plate
  • Item Name: 5inch-Caster-028
  • Wheel Diameter: 125mm
  • Wheel Width: 40mm
  • Wheel Diameter: 5" Inch = 125mm
  • Overall Height: 165mm
  • Overall Height Inch: 6.496"
  • Mounting Type: Top Plate
  • Top Plate Size: 110mm x 100mm x 4mm fork:3.5mm
  • Hole distance: 85mm x 75mm
  • Wheel Core: Polypropylene
  • Tire: Polypropylene
  • Bearing type: ball bearing
  • Load Capacity: 661 lb
  • Mounting: Fixed
  • Temperature Range: -40 to 180 F

  • 5inch-Caster-028 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. The wheel has a width of 40mm=1.575" inch. The overall height of the caster is 165mm or 6.496" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 110mm x 100mm x 4mm fork:3.5mm with the holes distance of 85mm x 75mm. The ball bearing design will enable the Polypropylene tire to roll easily with a core made of Polypropylene. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 661 lb with a Fixed type. Last and not least the temperature range = -40 to 180 F. Enjoy our 5inch-Caster-028, we wish all the best in your project.
