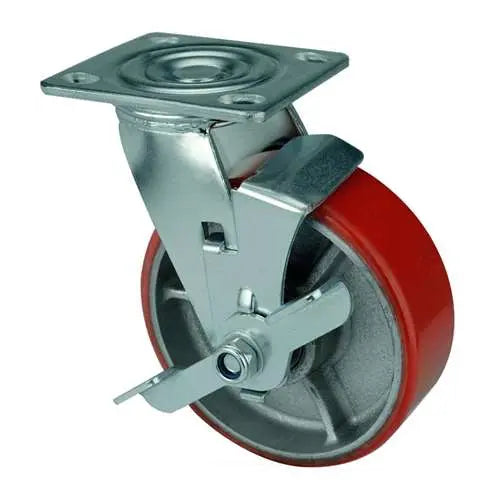

5" Inch Caster 661 lbs Swivel and Center Locking Iron core and Polyurethane Top Plate

5" Inch Caster 661 lbs Swivel and Center Brake Iron core and Polyurethane Top Plate

Item Name: 5inch-Lock-Swivel-Caster-017

Wheel Diameter: 125mm

Wheel Width: 50mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 167mm

Overall Height Inch: 6.575"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Iron core and Polyurethane

Tire: Iron core and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 661 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

5inch-Lock-Swivel-Caster-017 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This caster is rolled on a wheel that has 125mm diameter/4.921" inch inches. Dimensions of the caster wheel is 50mm (1.969" inch). The caster dimensions heightwise is 167mm/6.575" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Rolling with a wheel core material of Iron core and Polyurethane and a Iron core and Polyurethane tire rolled over Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 661 lb with a Swivel and Center Locking type. The temperature range is -40 to 180 F. Buy the 5inch-Lock-Swivel-Caster-017 now, just add the quantity to basket and click on Checkout.
