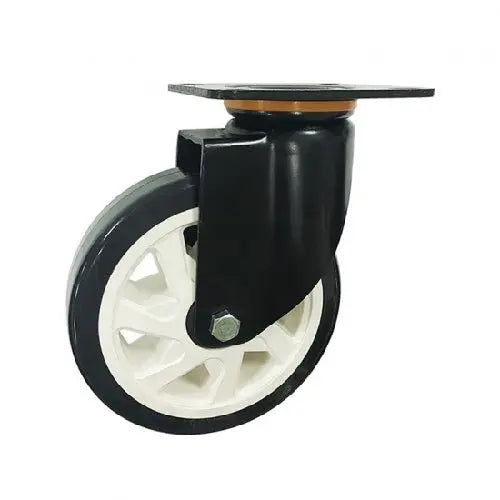

5" Inch Caster 661 lbs Swivel Polyurethane and Polypropylene Top Plate

5" Inch Caster 661 lbs Swivel Polyurethane and Polypropylene Top Plate

Item Name: 5inch-Swivel-Caster-034

Wheel Diameter: 125mm

Wheel Width: 40mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 165mm

Overall Height Inch: 6.496"

Mounting Type: Top Plate

Top Plate Size: 110mm x 100mm x 4mm fork:3.5mm

Hole distance: 85mm x 75mm

Wheel Core: Polyurethane and Polypropylene

Tire: Polyurethane and Polypropylene

Bearing type: ball bearing

Load Capacity: 661 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

You need 5inch-Swivel-Caster-034 to have your office desk, equipment or even a machine to easily roll them around. This caster is rolled on a wheel that has 125mm diameter/4.921" inch inches. The wheel has a width of 40mm=1.575" inch. The caster dimensions heightwise is 165mm/6.496" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 110mm x 100mm x 4mm fork:3.5mm and holes distance of 85mm x 75mm. The caster core is made of Polyurethane and Polypropylene and has a Polyurethane and Polypropylene tire with a low friction ball bearing. Each caster will carry the load of 661 lb and is Swivel type. Last and not least the temperature range = -40 to 180 F. Enjoy our 5inch-Swivel-Caster-034, we wish all the best in your project.
