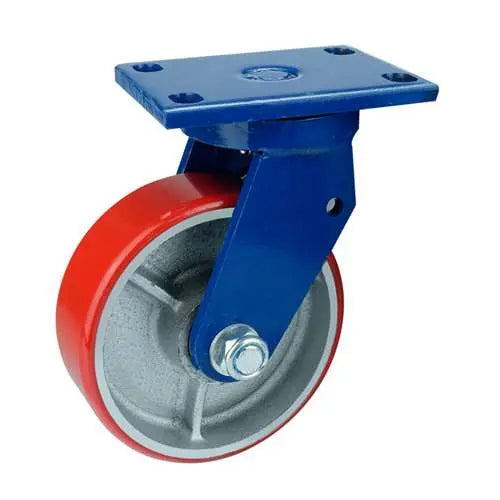

5" Inch Caster 882 lbs Swivel Cast iron polyurethane Top Plate

5" Inch Caster 882 lbs Swivel Cast iron polyurethane Top Plate

Item Name: 5inch-Swivel-Caster-028

Wheel Diameter: 125mm

Wheel Width: 50mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 195mm

Overall Height Inch: 7.677"

Mounting Type: Top Plate

Top Plate Size: 138mm x 110mm x 10mm

Hole distance: 110mm x 75mm

Wheel Core: Cast iron polyurethane

Tire: Cast iron polyurethane

Bearing type: Precision double ball bearing

Load Capacity: 882 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Mounting 5inch-Swivel-Caster-028 is the solution of making your project to move around by pushing. Diameter of the caster wheel is a metric standard 125mm that is equal to 4.921" inch with imperial units. Dimensions of the caster wheel is 50mm (1.969" inch). The caster dimensions heightwise is 195mm/7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 138mm x 110mm x 10mm and holes distance of 110mm x 75mm. The caster core is made of Cast iron polyurethane and has a Cast iron polyurethane tire with a low friction Precision double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 882 lb with a Swivel type. Temperature range = -40 to 180 F. Buy the 5inch-Swivel-Caster-028 now, just add the quantity to basket and click on Checkout.
