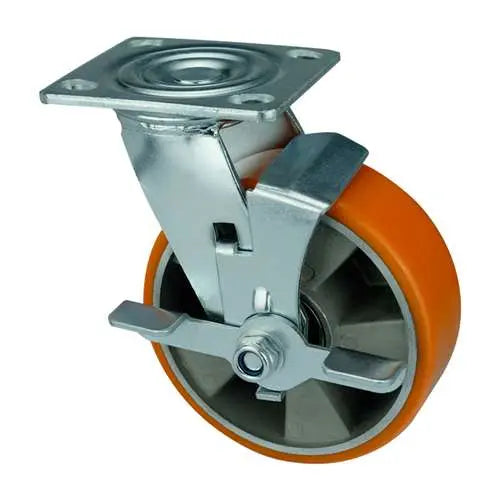

5" Inch Caster 926 lbs Swivel and Center Locking Aluminium and Polyurethane Top Plate

5" Inch Caster 926 lbs Swivel and Center Brake Aluminium and Polyurethane Top Plate

Item Name: 5inch-Lock-Swivel-Caster-001

Wheel Diameter: 125mm

Wheel Width: 50mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 175mm

Overall Height Inch: 6.890"

Mounting Type: Top Plate

Top Plate Size: 115mm x 100mm x 6mm

Hole distance: 72mm x 85mm

Wheel Core: Aluminium and Polyurethane

Tire: Aluminium and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 926 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

Wheel casters like the 5inch-Lock-Swivel-Caster-001 are used to roll your built machine or equipment back and forth. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 175mm/6.890" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 100mm x 6mm and holes distance of 72mm x 85mm. Rolling with a wheel core material of Aluminium and Polyurethane and a Aluminium and Polyurethane tire rolled over Double ball beaing. Each caster will carry the load of 926 lb and is Swivel and Center Locking type. Temperature range = -40 to 180 F. Buy the 5inch-Lock-Swivel-Caster-001 now, just add the quantity to basket and click on Checkout.
