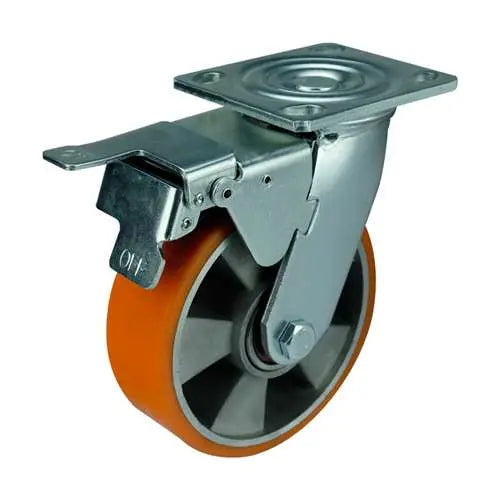

5" Inch Caster 926 lbs Swivel and Upper Locking Aluminium and Polyurethane Top Plate

5" Inch Caster 926 lbs Swivel and Upper Brake Aluminium and Polyurethane Top Plate

Item Name: 5inch-Lock-Swivel-Caster-002

Wheel Diameter: 125mm

Wheel Width: 50mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 175mm

Overall Height Inch: 6.890"

Mounting Type: Top Plate

Top Plate Size: 115mm x 100mm x 6mm

Hole distance: 72mm x 85mm

Wheel Core: Aluminium and Polyurethane

Tire: Aluminium and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 926 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Mounting the 5inch-Lock-Swivel-Caster-002 Wheel Caster can make your life easier, push or pull your new project on wheels. This caster is rolled on a wheel that has 125mm diameter/4.921" inch inches. Dimensions of the caster wheel is 50mm (1.969" inch). The overall height of the caster is 175mm or 6.890" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 115mm x 100mm x 6mm with the holes distance of 72mm x 85mm. Rolling with a wheel core material of Aluminium and Polyurethane and a Aluminium and Polyurethane tire rolled over Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 926 lb with a Swivel and Upper Locking type. Last and not least the temperature range = -40 to 180 F. Enjoy our 5inch-Lock-Swivel-Caster-002, we wish all the best in your project.
