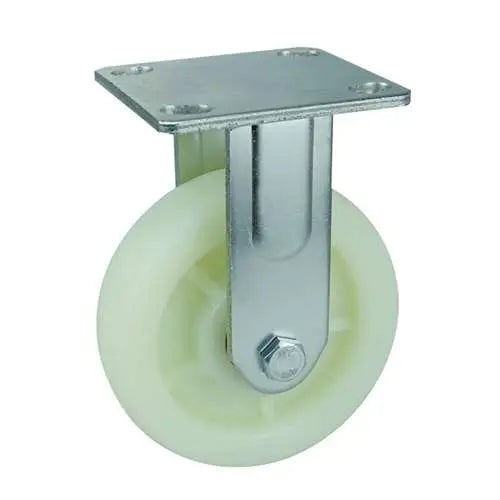

6" Inch Caster 1543 lbs Fixed Polypropylene Top Plate
Item Name: 6inch-Caster-032
Wheel Diameter: 150mm
Wheel Width: 45mm
Wheel Diameter: 6" Inch = 150mm
Overall Height: 190mm
Overall Height Inch: 7.480"
Mounting Type: Top Plate
Top Plate Size: 115mm x 110mm x 6mm
Hole distance: 72mm x 85mm
Wheel Core: Polypropylene
Tire: Polypropylene
Bearing type: Double ball beaing
Load Capacity: 1543 lb
Mounting: Fixed
Temperature Range: -40 to 180 F
Whatever you are building needed to be on wheels, here come the 6inch-Caster-032. This wheel caster has a wheel diameter of 150mm or 5.906" inch in inches. Dimensions of the caster wheel is 45mm (1.772" inch). The overall height of the caster is 190mm or 7.480" inch. Mounted via a Top Plate that has the size of 115mm x 110mm x 6mm and the holes distance of 72mm x 85mm. Rolling with a wheel core material of Polypropylene and a Polypropylene tire rolled over Double ball beaing. Each caster will carry the load of 1543 lb and is Fixed type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Caster-032 in order to have it :).
