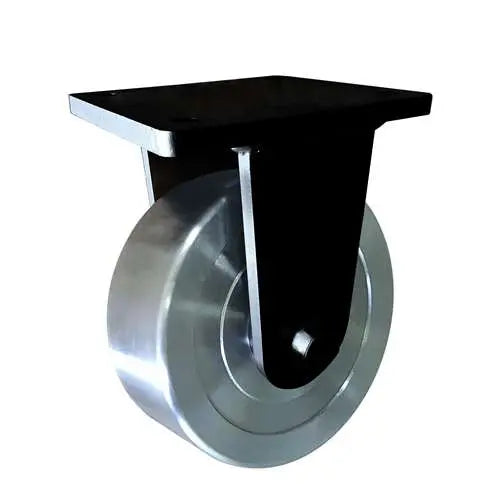

6" Inch Caster 3307 lbs Fixed Cast iron polyurethane Top Plate

6" Inch Caster 3307 lbs Fixed Cast iron polyurethane Top Plate

Item Name: 6inch-Caster-021

Wheel Diameter: 150mm

Wheel Width: 75mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 215mm

Overall Height Inch: 8.465"

Mounting Type: Top Plate

Top Plate Size: 200mm x 153mm Top Plate: 14mm+housing: 10mm

Hole distance: 160mm x 90mm

Wheel Core: Cast iron polyurethane

Tire: Cast iron polyurethane

Bearing type: Precision double ball bearing

Load Capacity: 3307 lb

Mounting: Fixed

Temperature Range: -40 to 180 F

Don't think too much, use 6inch-Caster-021 to get your DIY move and manuver around. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. Dimensions of the caster wheel is 75mm (2.953" inch). The Caster with the wheel from end to end is 215mm = 8.465" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 200mm x 153mm Top Plate: 14mm+housing: 10mm with the holes distance of 160mm x 90mm. Low drag was achieved by a Cast iron polyurethane core on a Cast iron polyurethane tire spinning freely with a Precision double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 3307 lb with a Fixed type. Temperature range = -40 to 180 F. Enjoy our 6inch-Caster-021, we wish all the best in your project.
