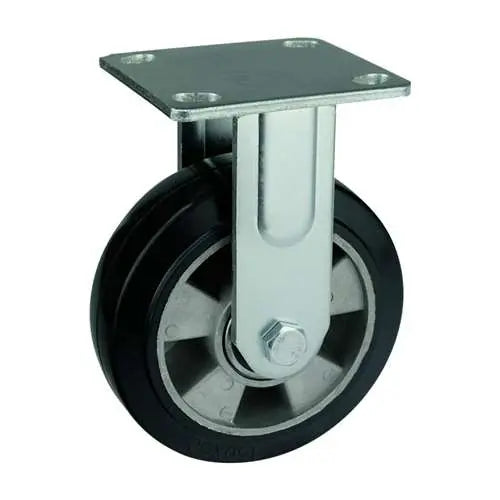

6" Inch Caster 551 lbs Fixed Aluminum core and Rubber Top Plate
6" Inch Caster 551 lbs Fixed Aluminum core and Rubber Top Plate
Couldn't load pickup availability
Mounting the 6inch-Caster-014 Wheel Caster can make your life easier, push or pull your new project on wheels. Diameter of the caster wheel is a metric standard 150mm that is equal to 5.906" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The Caster with the wheel from end to end is 190mm = 7.480" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 100mm x 6mm and holes distance of 72mm x 85mm. The caster core is made of Aluminum core and Rubber and has a Aluminum core and Rubber tire with a low friction Double ball beaing. Each caster will carry the load of 551 lb and is Fixed type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Caster-014 in order to have it :).
